DC-85 Electronic Counting Machine

Get a Price/Quote

Product Details:

Interface RS232 Serial Port
Automatic Grade Automatic
Function Counting and Weighing
Power Source Electric
Size 320 mm x 340 mm x 120 mm
Usage Industrial
IP Rating IP20
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DC-85 Electronic Counting Machine Price And Quantity

DC-85 Electronic Counting Machine Product Specifications

Interface RS232 Serial Port
Usage Industrial
Size 320 mm x 340 mm x 120 mm
Product Type Electronic Counting Machine
Capacity Range 1 g to 30 kg
Automatic Grade Automatic
IP Rating IP20
Color White & Blue
Power Supply AC 220V / 50Hz
Weighing Scale Type Digital Counting Scale
Power Source Electric
Accuracy 10 mg
Load Up to 30 kg
Monitor Display LED Display
Application Pharmaceuticals, Electronic Component Counting, Small Parts Counting
Material ABS Plastic Body
Features Sample Counting, Piece Counting, Automatic, Quick Response
Connectivity Type Wired
Function Counting and Weighing
Display Type Digital LED

Product Description

DC-85 Electronic Counting Machine deserves praise for its application specific design and long lasting quality. It needs 230v voltage and 17w power to operate. Maximum operating temperature of this machine is 45 degree C and its maximum humidity is 85% RH. Diameter of DC-85 Electronic Counting Machine is 302 x 295 x 125 mm. Its net weight is 4.5 kg around. This apparatus has 13 mm display screen with 5 digit display arrangement. This machine has 4 Ah 6v battery with in built charger. It also has total 13 function keys and 10 numeric keys. Long working life is one of its key aspects.

Technical Specification

Power supply	230V (+15%,-10%) AC, 50 Hz.
Power consumption	17W
Operating temperature / humidity	0° C to 45° C / 85%RH Max. (Non-condensing)
Physical dimension	302(L) x 295(D) x 125(H) mm. ± 0.5 mm.
Net weight	4.5 kg (approx.)
Display type	Green Vacuum Fluorescent Display (VFD)
Display digit	Unit weight 5 digits, weight 5 digits, quantity 6 digits.
Display size	13 mm.
Number of keys	10 Numeric keys and 13 function keys [Tactile key pad]
Battery charger	In-built
Battery	6V / 4Ah

High-Speed Counting and Weighing

Achieve efficient and accurate results with the DC-85s rapid 800 counts per minute capacity. Its advanced electronics and sturdy construction, combined with user-friendly digital LED display, ensure reliable performance for fast-paced industrial applications.

Versatile Application and User-Friendly Features

The DC-85 is built for flexibility, handling sample settings from 10 to 100 pieces and piece weights ranging from 0.01g up to 999.99g. Enhanced with multi-user support and a total piece display, it is well-suited for various industrial workflows and multiple user environments.

Durable Design and Seamless Integration

Constructed with a stainless steel plate and housed in an ABS plastic body, the DC-85 is robust and reliable. Its RS232 serial port ensures smooth connectivity to printers and PCs for data management, and overload protection provides peace of mind during heavy-duty operations.

FAQs of DC-85 Electronic Counting Machine:

Q: How does the DC-85 Electronic Counting Machine ensure high accuracy in counting?

A: The DC-85 employs advanced digital weighing technology with an accuracy of 10 mg and external calibration, allowing precise counting and weighing for items from 0.01g up to 30kg. Overload protection and automatic error alerts further enhance operational accuracy.

Q: What is the process for calibrating the DC-85 counting machine?

A: Calibration is performed externally, allowing users to maintain optimal accuracy by following the straightforward calibration instructions provided in the user manual. This ensures the machine delivers consistent and reliable results in varying industrial conditions.

Q: Where can the DC-85 be used effectively?

A: This machine is suitable for use in pharmaceuticals, electronic component counting, and small parts tallying, making it ideal for industrial settings, warehouses, and manufacturing units in India or for exporting operations requiring precise inventory management.

Q: What are the main benefits of using the DC-85 in industrial applications?

A: Key benefits include rapid counting speed, a broad capacity range, robust construction, and seamless PC/printer integration via RS232. The devices buzzer for errors and multi-user support streamline workflow and reduce manual counting errors.

Q: How does the tare function assist in counting operations?

A: The tare function allows users to subtract container weight, ensuring the counting or weighing process only includes the parts or items being measured. This feature is vital for achieving accurate readings when using bowls or containers during operations.

Q: When should overload protection be utilized with the DC-85?

A: Overload protection automatically triggers when the load exceeds the devices capacity, safeguarding internal components and maintaining long-term durability. Operators should heed audible alerts and remove excess load to prevent damage.

Q: What connectivity options does the DC-85 offer for data management?

A: The RS232 serial port provides wired connectivity for easy integration with printers and PCs, enabling effective record-keeping, inventory tracking, and process automation in industrial environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Counting Scale' category

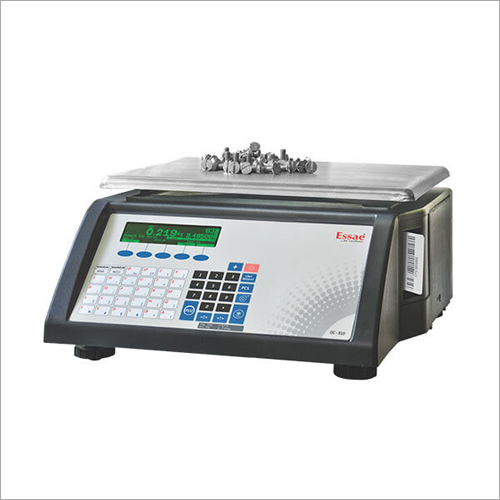

DC-810/815 Counting Scale Minimum Order Quantity : 1 Material : Steel Warranty : Yes Monitor Display : Digital Power Supply : Electric Weighing Scale Type : Mechanical Scale
