DP-810 Data Printer

Get a Price/Quote

Product Details:

Current 0.5A
CPU 8-bit Microprocessor
Cash Drawer Optional
Product Type Data Printer
Color Grey
Screen Size 2 Line x 16 Character Display
Installation Tabletop
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DP-810 Data Printer Price And Quantity

Humidity 10% to 90% RH (non-condensing)
Printing Speed 2.5 lines/second
Operating Temperature 0°C to 50°C
Paper Loading Easy Drop-in Paper Loading
Paper Feeding Automatic/Electronic
Display 16 Characters x 2 Lines LCD
Dimensions 210mm x 170mm x 140mm
Storage Temperature -20°C to 60°C
Interface RS232 Serial Port, Parallel Port
Character Set ASCII & Graphic

DP-810 Data Printer Product Specifications

Color Grey
Screen Size 2 Line x 16 Character Display
Product Type Data Printer
Cash Drawer Optional
CPU 8-bit Microprocessor
Current 0.5A
Weight 3.5 kg (Approx)
Memory Size 32KB RAM, 64KB ROM
Usage Data Logging, Transaction Printing
Power Supply AC 220V 10%, 50/60Hz
Paper Size 58 mm
Voltage 220 V
Installation Tabletop
Printer Type Thermal Printer

Humidity 10% to 90% RH (non-condensing)
Printing Speed 2.5 lines/second
Operating Temperature 0°C to 50°C
Paper Loading Easy Drop-in Paper Loading
Paper Feeding Automatic/Electronic
Display 16 Characters x 2 Lines LCD
Dimensions 210mm x 170mm x 140mm
Storage Temperature -20°C to 60°C
Interface RS232 Serial Port, Parallel Port
Character Set ASCII & Graphic

Product Description

DP-810 Data Printer Technical Specification

Model number	Essae DP-810
Processor	32 Bit ARM Processor
Power Supply	12 V DC / 5A Adaptor
Key Board	7 Keys
Display	Graphics Dot Matrix LCD
Interface	RS-232 Serial
Features	Simple weight list print Weight Verification Tablet & Capsule SQC Header & Footer program 21CFR Compliance
Printer Specification	Printing Speed : Dot Matrix, 2.5 lines/sec		Resolution : 144 dots/lines
Paper Specification	Paper Type : Normal	Paper Width : 57.5+/-0.5 mm		Paper Roll Diameter : 50 mm (max)
Physical Dimension	211 (L) x 221 (D) x 120 (H) mm

Versatile Connectivity

The DP-810 Data Printer offers flexible connectivity options, including both RS232 serial and parallel ports, allowing seamless integration with a wide range of data logging systems, point-of-sale setups, and other compatible devices. This ensures adaptability in diverse operational environments.

User-Friendly Operation

Featuring a 2-line by 16-character LCD display and simple tabletop installation, this thermal printer prioritizes ease of use. The drop-in paper loading and electronic automatic paper feed minimize downtime and simplify maintenance, while the intuitive interface supports efficient operation.

Robust Performance and Durability

Designed to function in demanding conditions, the DP-810 maintains reliable operation at temperatures between 0C and 50C and humidity levels from 10% to 90% RH (non-condensing). Its durable construction and memory capacity make it suitable for continuous data logging and transaction printing tasks.

FAQs of DP-810 Data Printer:

Q: How do I load paper into the DP-810 Data Printer?

A: The DP-810 features an easy drop-in paper loading system. Simply open the printer cover, insert the 58 mm paper roll into the compartment, and close the cover. The automatic paper feed will align the paper for immediate use.

Q: What interfaces are available for connecting the DP-810 to other devices?

A: This printer is equipped with both RS232 serial and parallel ports, enabling connection to a wide range of systems such as computers, data loggers, and POS units.

Q: When should I use the DP-810 Data Printer for my business operations?

A: The DP-810 is ideal for any scenario requiring reliable data logging or transaction printing, such as sales processing, inventory management, or receipt generation in industrial and commercial environments.

Q: Where can the DP-810 Data Printer be installed?

A: Its compact and sturdy design makes it perfect for tabletop installation in offices, retail counters, manufacturing units, or warehouses.

Q: What is the process for maintaining the DP-810 Data Printer?

A: Routine maintenance involves regularly replacing the paper roll, ensuring the print head remains clean, and checking power connections. The straightforward design and automatic paper feeding greatly reduce required maintenance time.

Q: How does the DP-810 Data Printer benefit daily business operations?

A: With its swift printing speed, robust memory (32KB RAM, 64KB ROM), and reliable performance across varying environmental conditions, the DP-810 enhances operational efficiency by providing timely and accurate printed records.

Q: What are the primary uses of the DP-810 Data Printer?

A: This printer is designed for data logging and transaction printing, making it useful for generating receipts, logging operational data, and producing immediate hardcopy records wherever documentation is required.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Receipt Printer Scales' category

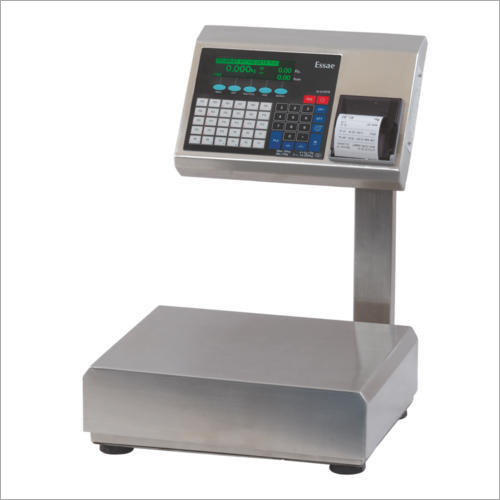

SI-810PRSS Receipt Printing Weighing Machine Price : 65000 INR/Piece Minimum Order Quantity : 1000 Product Type : Printing Weighing Machine Usage : Industrial Power Supply : Electric Voltage : 220240 Volt (v)
