Moisture Analyser Weighing Balance

Get a Price/Quote

Product Details:

Automatic Grade Automatic
Function Moisture Content Analysis
IP Rating IP42
Battery Life Not Applicable Mains operated
Application Precise moisture determination in samples
Connectivity Type Wired
Power Source Mains Electricity
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Moisture Analyser Weighing Balance Price And Quantity

Moisture Analyser Weighing Balance Product Specifications

Display Type Backlit LCD
Function Moisture Content Analysis
IP Rating IP42
Weighing Scale Type Digital Moisture Balance
Capacity Range 0.1g to 110g
Interface RS232
Usage Laboratory, Industrial
Size 350mm x 200mm x 180mm
Material ABS Plastic & Stainless Steel
Monitor Display LCD Display
Battery Life Not Applicable Mains operated
Application Precise moisture determination in samples
Connectivity Type Wired
Features Halogen heating; Fast drying; Overload protection
Power Source Mains Electricity
Accuracy 0.01g / 0.01%
Automatic Grade Automatic
Load Up to 110g
Color White
Power Supply 220V AC, 50Hz
Product Type Moisture Analyser Weighing Balance

Product Description

Technical Specification

Measurement Method	400 W straight halogen lamp heating system with SRA filter and SHS weighing technology
Max Sample Weight Capacity	51 g
Weight Resolution	0.001 g
Moisture Content Display	0.01% / 0.1%
Moisture Content Accuracy over 1g	0.10%
(Standard Deviation) over 5g	0.02%
Heating Technology	Halogen lamp (Straight type, 400 Watt max, 5000 hours)
Drying Temperature (1°C increment)	50-200°C
Memory of Measurement Programs	20 sets
Measurement Programs	Standard Mode/Automatic Mode/Quick Mode/Timer Mode/Manual Mode
Measurement Mode	Moisture content(Wet or Dry base) /Dry content/Ratio/Weight
Heating Mode	Standard / Quick / Step /Ramp
Display Type	Large VFD
Interface	RS-232C standard
Data Memory Function	100
Operating Temperature	5-40°C (41-104°F) less than 85%RH
GLP/GMP/ISO	Available
Self Check Function	Standard
Communication Software	WinCT-Moisture standard
Sample Pan Size	Ø85 mm
Power	AC 200V to 240V (1.5A), 50/Hz, Approx. 400W
Physical Dimention/Weight	215(W) x 320(D) x 173(H) / Approx. 6 kg
Standard Accessories	Sample Pans - 20, Pan Handles -2, Spoon, Test Sample (30g of Sodium Tartrate Dihydrate), CD-ROM (WinCT-Moisture), Glass Fiber Sheet, RS-232C Cable, Display Cover, Dust Cover, Instruction Manual, Quick Reference Card, Power Cable, Fuse

Advanced Moisture Analysis

This moisture analyser is equipped with a halogen heating system, providing efficient and uniform drying for accurate moisture content results. Adjustable settings enable precise control for varied sample types, including powders, granules, and liquids. The device supports up to 20 user-defined methods, accelerating repetitive processes and enhancing laboratory productivity.

User-Friendly Operation & Connectivity

The instrument features a backlit LCD for clear monitoring and simple navigation. With built-in USB support and RS232 interface, data can be quickly transferred to other devices for documentation or analysis. Full capacity taring, automatic overload protection, and internal/external calibration options make routine tasks streamlined and secure.

Reliable Performance for Laboratories & Industry

Constructed with premium ABS plastic and stainless steel, this analyser is robust, easy to maintain, and safe. Operating efficiently in environments up to 85% relative humidity and ambient temperatures of 5C to 40C, it ensures repeatable results (0.2% for 2g samples) on every use. With IP42 protection, its well-suited for both industrial and laboratory settings.

FAQs of Moisture Analyser Weighing Balance:

Q: How does the halogen lamp heating element benefit moisture analysis?

A: The halogen lamp provides rapid and uniform heating, enabling efficient moisture evaporation for accurate and repeatable measurements. This results in quicker analysis times and reliable results across various sample types.

Q: What sample types can be analyzed using this moisture balance?

A: The device supports the analysis of liquids, powders, and granules, making it suitable for a wide range of laboratory and industrial applications where precise moisture determination is required.

Q: When should I perform calibration on the moisture analyser?

A: Calibration should be carried out periodically or after any significant change in the operating environment. The instrument supports both internal and external calibration processes, ensuring optimal measurement accuracy at all times.

Q: Where can the moisture analyser be used?

A: It is designed for laboratory and industrial environments, operating efficiently in ambient temperatures of 5C to 40C and humidity levels up to 85% RH. It is ideal for facilities needing precise moisture content analysis.

Q: What are the different drying modes available and how do they enhance process flexibility?

A: The analyser features Standard, Step, Ramp, and Fast drying modes. These modes allow users to tailor drying processes to sample specifications, improving efficiency and optimizing measurement outcomes.

Q: How is data output managed for analysis and record-keeping?

A: Data is conveniently exported via USB or RS232 interface, allowing seamless transfer to computers or printers for documentation, analysis, and storage of results.

Q: What are the benefits of method memory and overload protection?

A: Method memory allows up to 20 procedures to be stored and reused, saving time in repeated analyses. Overload and over-temperature alarms protect the instrument and samples, extending device lifespan and ensuring safe operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital Weighing Scale' category

Crane Scale - Thermal Usage : For weighing heavy suspended items Size : Compact Display Type : Digital LED Features : Portable Durable High Precision Material : Other, Highgrade Metal Power Source : Rechargeable Battery Warranty : 1 Year Function : Weight measurement Application : Industrial Weighing Monitor Display : LED Display, Other Product Type : Crane Scale Power Supply : Battery Operated Color : Orange Automatic Grade : Fully Automatic Interface : Userfriendly interface with button controls Weighing Scale Type : Other, Crane Scale Load : Heavyduty Load Support Capacity Range : Up to 1 Ton Connectivity Type : Wireless Accuracy : High Battery Life : Longlasting IP Rating : IP65

Send Inquiry

High Accuracy Hanging Scale Usage : Industrial and commercial weighing Size : Compact Display Type : Digital LED display Features : Easy to use durable construction Material : Other, Stainless steel Power Source : Batterypowered Warranty : 1 Year Warranty Function : Hanging scale for weight measurement Application : Weighing large objects and loads Monitor Display : Other, Bright LED screen for visibility Product Type : Hanging Scale Power Supply : Rechargeable battery Color : Silver Automatic Grade : Automatic Interface : LED interface Weighing Scale Type : Other, Hanging Scale Load : Heavyduty Capacity Range : Up to 300kg Connectivity Type : Wired Accuracy : High Accuracy Battery Life : Longlasting battery IP Rating : IP65

Send Inquiry

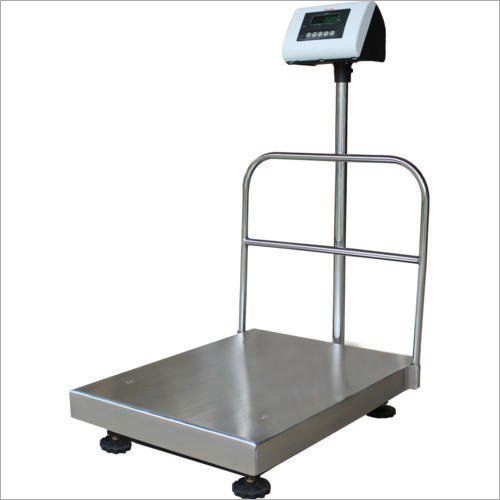

Platform Scale Usage : Industrial and commercial Size : Standard Display Type : Digital Features : Precise measurement durable platform adjustable stand Material : Other, Stainless steel Power Source : AC adapter / Battery Warranty : 1 year Function : Weight measurement Application : Industrial weighing Monitor Display : Other, LCD screen monitor Product Type : Platform Scale Power Supply : 220V AC Color : Silver Automatic Grade : Automatic Interface : LCD Monitor Weighing Scale Type : Platform Scale, Other Load : Heavyduty load capacity Capacity Range : 300 kg 500 kg Connectivity Type : Wired Accuracy : High Battery Life : Up to 10 hours IP Rating : IP54
