SI-810 Label Printing Scale

Get a Price/Quote

Product Details:

Power Source AC Mains & Optional Rechargeable Battery
Automatic Grade Automatic
Features Barcode Printing, PLU Support, Price Computing, Multiple Label Formats
IP Rating IP54
Display Type Digital LCD Display
Connectivity Type Wired (LAN) and Serial
Size 400mm370mm500mm (Approx.)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SI-810 Label Printing Scale Price And Quantity

SI-810 Label Printing Scale Product Specifications

Features Barcode Printing, PLU Support, Price Computing, Multiple Label Formats
Automatic Grade Automatic
Material ABS Plastic and Stainless Steel
Interface RS-232 & Ethernet
Accuracy 1g (0-6kg); 2g (6-15kg); 5g (15-30kg)
Product Type Label Printing Scale
Power Source AC Mains & Optional Rechargeable Battery
Size 400mm370mm500mm (Approx.)
Capacity Range 0-30kg
Usage Supermarkets, Grocery Stores, Retail shops
Battery Life Up to 12 hours (with Optional Battery)
Application Weighing and label printing for retail transactions
Weighing Scale Type Electronic Weighing Scale
IP Rating IP54
Monitor Display Dual-side LCD (Customer and Operator) with Backlight
Function Weighing, Calculating, Label Printing
Display Type Digital LCD Display
Connectivity Type Wired (LAN) and Serial
Load Up to 30kg
Color Grey/Black
Power Supply AC 220V/50Hz

Product Description

SI-810 Label Printing Scale can be availed in 6 kg/15 kg/31 kg capacity and 1g/2g/5 g accuracy based choices. Its platter diameter is 280 x 348 mm and printing speed is 80 mm/sec. It has RS-232 serial interface and Ethernet LAN connectivity. Diameter of this SI-810 Label Printing Scale is 490 x 360x 450 mm. Designed by skilled personnel, this label printing equipment can handle labels having maximum 54 mm width, up to 110 mm length and maximum 170 microns thickness. Its label printing speed is 80mm/sec. Quality of this machine has been verified on the basis of its service life, design precision, operating speed, user friendliness and durability.

Technical Specification

Description	Barcode Label Printing Scale
Capacity/Accuracy	6 kg/1 g, 15 kg/2 g, 31 kg/5 g
Platter Size	280x348 mm
Label Width and Length (min~max)	25~54 mm, 25~110 mm
Label Thickness (max)	170 microns
PLU	5000
Printing speed	80 mm/sec
Label Roll Diameter (max)	Outer : 120 mm, Inner : 28 mm
Standard Interfaces	1 x RS-232 Serial, 1 x Ethernet LAN
Dimension (L x W x D)	490 mm x 360 mm x 450 mm

Advanced Label Printing Technology

The SI-810 utilizes a thermal direct printer that delivers labels at speeds reaching 75mm per second. Supporting up to 60mm label width and a roll diameter of 75mm, it offers versatility for different labeling needs. Multiple label formats are available, including price computing and barcode printing, meeting the demands of modern retail operations.

Designed for Durability and Hygiene

Built with a combination of ABS plastic and stainless steel, the SI-810s anti-insect and waterproof design ensures reliability even in challenging store environments. The IP54 rating and waterproof tactile membrane keyboard make cleaning straightforward, supporting compliance with hygiene standards in fresh produce and grocery sections.

Comprehensive Data and Connectivity Options

Managing thousands of products is effortless, thanks to PLU memory for 10,000 items and 32MB internal memory. The scale can connect via LAN (Ethernet), RS-232, and optional USB for data transfer to PC software. This facilitates smooth integration with store management systems and quick updates to product information.

FAQs of SI-810 Label Printing Scale:

Q: How do I set up and operate the SI-810 Label Printing Scale in my retail store?

A: Simply connect the SI-810 to a power source (AC 220V/50Hz), configure it using the included PC software, and use the waterproof tactile keyboard for quick operation. Follow on-screen dual LCD prompts for weighing, pricing, and label printing tasksideal for fast-paced environments like supermarkets and grocery stores.

Q: What are the benefits of using thermal direct label printing with the SI-810?

A: Thermal direct printing ensures fast and reliable label output (up to 75mm/sec) without the need for ink or toner refills. This reduces maintenance costs and downtime, providing clear, durable labels for pricing and barcodes direct from your scale.

Q: When should I use the PLU memory feature, and how does it improve my workflow?

A: Utilize the PLU memory feature to store up to 10,000 commonly sold products for rapid access during checkout. This streamlines the process for busy retail transactions, improves accuracy, and minimizes wait times for your customers.

Q: Where can the SI-810 Label Printing Scale be deployed most effectively?

A: The SI-810 is suited for supermarkets, grocery stores, and general retail shopsanywhere weighing and label printing are required for products up to 30kg. Its robust, waterproof construction makes it perfect for produce, fresh foods, and other perishable items.

Q: What process should be followed for replacing label rolls and maintaining the scale?

A: To replace label rolls, open the label printer compartment, remove the used roll, and insert a new 60mm x 75mm (max) roll. Regularly clean the stainless steel platform and waterproof membrane keyboard with a damp cloth. The anti-insect design helps reduce maintenance compared to traditional scales.

Q: How does the SI-810 support multi-language environments and different retail requirements?

A: The SI-810 supports multiple languages on both the operator and customer displays, making it adaptable for diverse retail settings. Its software allows businesses to program various label formats and languages, ensuring smooth operation across regions.

Q: What are the primary advantages of the SI-810s dual-side LCD display for retail transactions?

A: The dual-side LCD ensures both customers and operators have simultaneous visibility into weight, price, and transaction details. The backlit digital display enhances clarity in low-light environments, reducing errors and providing confidence at the point of sale.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Weighing System & Solutions' category

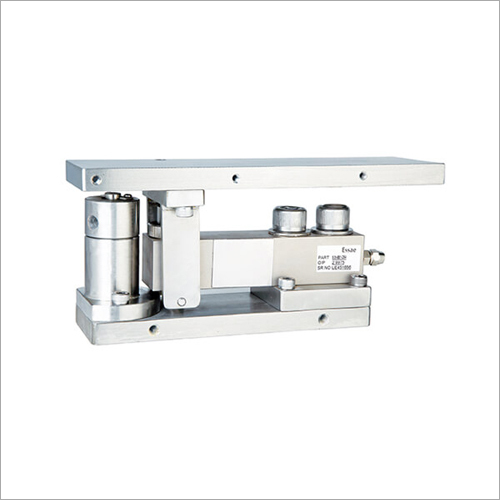

SI-810 Tank Weighing Scale Automatic Grade : SemiAutomatic Features : High Precision, Rugged Design, Overload Protection Material : Other, Mild Steel Construction Power Source : Electric Capacity Range : 500 kg to 50 Tons Monitor Display : Other, LED Display Display Type : Segment LED Connectivity Type : Wired Color : Blue / Gray Accuracy : Class III Interface : RS232 Product Type : Tank Weighing Scale Size : Custom Sizes Available Usage : Industrial/Commercial Function : Tank Weight Measurement Weighing Scale Type : Other, Digital Platform Scale Application : Tank Weighing, Process Automation Load : 3/4/6 Loadcell Configuration Power Supply : AC 220V/50Hz IP Rating : IP65 Battery Life : 812 Hours (Optional Battery)
