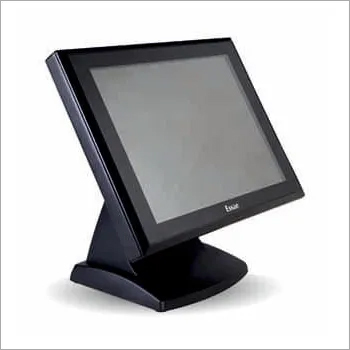

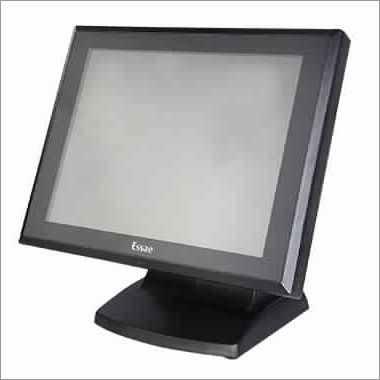

Back Point of Sale System

Back Point of Sale System

Product Details:

X

Product Description

Back Point of Sale System offered by us is equipped with Intel Baytrail J1900 Quad Core processor of 2.00GHZ capacity. This processor is devoid of fan and it has 2 MB Cache memory with integrated graphics chipset. This system has 38.1 cm TFT LCD screen with LED backlight function. Anti glare feature of this display screen prevents impairing of vision. Maximum screen resolution is 1024 x 768 and brightness is 350 nits. Provided Back Point of Sale System also has 4 GB low voltage system memory and 64 GB solid state Disk storage memory. Long working life and low operating cost are its key aspects.

Back Point of Sale System Technical Specification

Processor

Processor

Intel Baytrail J1900 QUAD-CORE 2.00GHz processor Embedded, Low Power, FANLESS processor, 2MB Cache memory with Integrated Graphics chipset

Operator Display

LCD Size

38.1 cm(15") TFT LCD with LED backlight, Anti-glare.

Maximum Resolution

1024 x 768

Brightness

350 nits

Touch Screen

5-Wire Resistive

Memory

System Memory

4GB DDR3L RAM (Low Voltage)

Storage Memory

64GB Solid State Disk (SSD) or 500 GB Hard Disk Driver(HDD)

External Interface ports

USB

5 x USB (2 x USB3.0, 3 x USB2.0)

Serial

3 x Serial (1 x DC +12V powered)

Network

1 x Gigabit LAN, 10/100/1000 Mbps, RJ-45

VGA

1 x VGA (Independent), DB-9

Audio

1 x Line-In, 1 x Line-out

In-built Factory Options

Wireless Network

Wi-Fi LAN module (Mini-PCIe)

Environmental

Operating Temperature

5°C ~ 40°C

Storage Temperature

-20°C ~ 55°C

Power Adapter

DC 12V/5A 60W

Optional Accessories

Printer

High speed POS thermal printer, 76mm paper, Auto-cutter, 260mm/sec, Serial+USB+LAN interface

Cash Drawer

5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch

MSR

3 Tracks – OPOS Compliant, USB interface

Customer Display

26.4 cm (10.4") Touch (PCAP) LCD,USB interface (rear mounted) Display resolution:800 x 600
(or)
20x2 Graphic LCD, Serial interface (rear mounted)
(or)
20x2 Graphic LCD, Serial interface (Pole type)

Mounting options

VESA-compliant Wall Mount Kit

Dimension (W X D X H)

4°C tilt angle: 370mm x 220mm x 360mm
84°C tilt angle: 370mm x 290mm x 310mm

Net Weight
(without any accessories)

5.6 Kg (approx)

Housing

MOC: ABS, Colour: Black with Sturdy Table stand

Operating Systems supported
(both 32-bit & 64-bit versions)


Windows 10 loT Enterprise 2016 LTSB Entry,Windows 10
Windows POS Ready "7"
Linux, as per specific request and confirmation only


ESSAE TERAOKA PRIVATE LIMITED
