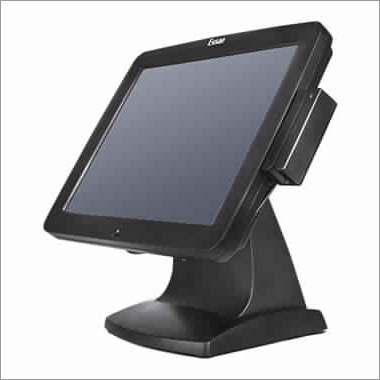

POS-615 POS System

Model

POS-615B

POS-615C

Processor

Intel Baytrail J1900 QUAD CORE 2.00 GHz processor Embedded, Low Power, FANLESS processor, 2 MB Cache memory

Intel Core i3
3.20Ghz processor
3 MB Cache Memory

Intel Core i5
2.20Ghz processor
6 MB Cache Memory

Chipset

Intel Baytrail J1900 with Integrated Graphics chipset

Intel H110 Chipset

System Memory

4 GB DDR3L RAM (expandable upto 8GB)

4 GB DDR4 RAM (expandable upto 16GB)

Storage Memory

128 GB Solid State Disk (SSD) or 500 GB HDD

USB

5

Serial (DB9)

3

4

Network

1 x Gigabit LAN

2 x Gigabit LAN

Display Port

1 x VGA

1 x HDMI

Audio

1 x Line-In, 1 x Line-out

Factory options

Wi-Fi LAN module (Mini-PCIe)

Printer

High Speed POS Thermal printer, 76 mm paper, 260 mm/sec, auto-cutter (Serial+USB+LAN) interface

Cash Drawer

5-Bill/8-Coin Metal Cash Drawer with Lock & Key and micro-switch

MSR

3 Track-OPOS Compliant, USB interface

Customer Display

26.4 cm(10.4") Touch (PCLP) LCD, USB interface (rear mounted) Display resolution: 800 x 600
or 20 x 2 Graphic LCD (rear mounted)
or 20 x 2 Graphic LCD (Pole type)

Mounting options

VESA-compliant Wall Mount Kit

Dimension (W X D X H)
(without any accessories)

4C tilt angle :382 mm x 220 mm x 356 mm
84C tilt angle :382 mm x 294 mm x 300 mm

Net Weight (without any accessories)

6.1 kg (approx)

Operating System supported (Both 32-bit &64-bit versions)

Windows 10 IOT Enterprise 2016 LTSB Entry
Windows Embedded POSReady 7
Linux (subject to confirmation)

Windows 10 IOT Enterprise 2016 LTSB Value
Windows Embedded POSReady 7
Linux (subject to confirmation)
