Semi Micro Balance

Get a Price/Quote

Product Details:

Power Source Electric
Interface RS232
Automatic Grade Automatic
Display Type Digital LCD
Size Pan Diameter: 85 mm
Function Precision Weighing
IP Rating IP54
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Semi Micro Balance Price And Quantity

Semi Micro Balance Product Specifications

Color White
Automatic Grade Automatic
Interface RS232
Power Source Electric
Usage Laboratory, Research Institutes
Product Type Semi Micro Balance
Weighing Scale Type Digital Laboratory Balance
Accuracy 0.01 mg (Semi Micro Scale)
Monitor Display LCD with Backlight
Power Supply 110-240 V AC Adapter
Battery Life Not Applicable (Mains Powered)
Size Pan Diameter: 85 mm
Display Type Digital LCD
Features Automatic internal calibration, Draft shield, High stability
Material Stainless Steel Weighing Pan, ABS Body
Connectivity Type Wired
IP Rating IP54
Load Up to 220 g
Application Chemical Analysis, Pharmaceutical Measurement
Capacity Range 60 g/220 g
Function Precision Weighing

Product Description

The LF-225DR comes with a very high precision of 0.01mg readability, much needed for advanced Research Analysis. It is based on advanced Tuning Fork Sensing Technology which has extremely low temperature drift and hence more reliable than Conventional Balances.

Accuracy 0.1 g / 0.01 mg
Capacity 220 / 92 g

Technical Specification

Capacity	92 g / 220 g
Read out (d)	0.01 mg / 0.1 mg
Repeatability (sd.)	0.02mg / 0.1mg
Non-Lineraity (typ.)	±0.03 mg / 0.2 mg
Stabilization time(typ.)	S sec./ 3 sec
Pan size	80 mm dia.
Calibration	With internal & external weight
Dimensions	210 x 320 x 335 mm Approx. 5.5 kg
Weights	Approx. 5.5 kg
Power source	AC 110/ 240V DC 5.9V
Output	RS232C (D-sub 9p)
Measuring system	Electro-magnetic force compensation sensor
Tare	Full weighing ranger
Display	Back-lit LCD (brightne ss adjustable in three levels)
EC type approval	Available for all models (Class 1)

Precision and Stability for Laboratory Applications

With an advanced internal motor-driven calibration system and a resolution of 0.00001 g, this semi micro balance ensures unmatched accuracy and stability. Its overload protection feature safeguards both data and equipment during routine measurements in various laboratory settings, supporting adherence to rigorous quality and research standards.

Durable and User-Friendly Design

The balance is engineered with a robust stainless steel weighing pan and an ABS body for longevity, while the glass draft shield with sliding doors enhances usability and minimizes environmental distortions. The digital LCD, equipped with a backlight, ensures easy and accurate reading, even in low-light conditions.

FAQs of Semi Micro Balance:

Q: How does the automatic internal calibration of this semi micro balance work?

A: The balance features an internal motor-driven calibration mechanism that periodically adjusts the measurement system, ensuring accurate results without manual intervention. This process eliminates the need for external calibration weights and minimizes user-induced error.

Q: What are the benefits of the glass draft shield with sliding doors?

A: The glass draft shield protects the weighing chamber from air currents and dust while allowing easy access through its smooth sliding doors. This design minimizes environmental interference, supporting highly stable and precise measurements.

Q: When is it appropriate to use this semi micro balance in a laboratory?

A: This balance is especially suitable for applications requiring high precision, such as chemical analysis and pharmaceutical measurements. It is ideal when minimal weighing values as low as 0.01 mg and fast response times are essential for research or quality control.

Q: Where can this balance be installed for optimal performance?

A: Install the balance on a vibration-free, stable benchtop within its specified operating temperature range (10C to 30C) and away from direct airflows and humidity to ensure optimal accuracy and performance.

Q: What is the weighing capacity and resolution of this digital laboratory balance?

A: The device offers a dual capacity range of up to 60 g (semi micro) and 220 g (analytical), with a high resolution of 0.00001 g and an accuracy of 0.01 mg, providing versatile precision for various laboratory routines.

Q: How do I connect the semi micro balance to external devices?

A: The balance is equipped with a standard RS232 interface for wired connectivity, enabling seamless data transfer to computers, printers, or laboratory information systems for efficient record-keeping and analysis.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital Weighing Scale' category

Retail Counter Scale Minimum Order Quantity : 1 Color : White Monitor Display : Digital Warranty : 1 Year Weighing Scale Type : Bench Scale Material : Other, Stainless Steel Platform Power Supply : AC 220V Power Source : Battery/Power Adapter Interface : Standard Automatic Grade : SemiAutomatic Display Type : LED Size : Customizable Function : Weighing Capacity Range : 50 kg 300 kg Kilograms (kg) Load : Heavy Duty Usage : Industrial and Retail Accuracy : High gm Product Type : Retail Counter Scale Features : Durable design High precision Application : Retail Connectivity Type : Wired Battery Life : Up to 8 hours IP Rating : IP54

Send Inquiry

Essae Retail Counter Scale Color : Multicolor (Primarily White & Blue) Monitor Display : PoleMounted LED Display, Other Warranty : 1 Year Manufacturer Warranty Weighing Scale Type : Other, Digital Counter Scale Material : Plastic & Metal, Other Power Supply : AC Power Input Power Source : Battery and Electric Interface : Button Interface Automatic Grade : SemiAutomatic Display Type : Digital Display Size : Compact Function : Weighing Capacity Range : Up to 30 Kg Load : 30 Kg Maximum Usage : Retail Shop Counter Weighing Accuracy : High Accuracy Product Type : Counter Weighing Scale Features : Tare Function Battery Backup Application : Retail Counter Connectivity Type : Wired Battery Life : 68 Hours IP Rating : IP54

Send Inquiry

Retail Bench Scale Color : White Monitor Display : Digital screen, Other Warranty : 1 year manufacturer warranty Weighing Scale Type : Electronic bench scale, Other Material : Other, Metal/Steel Power Supply : AC mains power and replaceable battery Power Source : Battery and mains Interface : Button controls Automatic Grade : Semiautomatic Display Type : LCD Size : Compact platform size Function : Weight measurement Capacity Range : 5kg 300kg Load : Platform load Usage : Used for retail and industrial applications Accuracy : Highly accurate Product Type : Bench scale Features : Durable Multifunctional High precision Application : Retail weighing Connectivity Type : Wired Battery Life : Up to 12 hours IP Rating : IP67

Send Inquiry

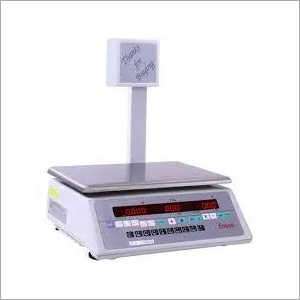

Essae Price Computing Scale Color : White Monitor Display : Integrated Dual Display, Other Warranty : 1 Year Weighing Scale Type : Price Computing Scale, Other Material : Other, Stainless Steel Platform Power Supply : Rechargeable Battery or AC Adapter Power Source : Battery and Mains Interface : Digital Automatic Grade : Manual Display Type : LED Display Size : Compact Size Function : Weighing and Price Computing Capacity Range : Up to 30kg Load : 30kg Max Usage : Commercial and Retail Accuracy : High Accuracy Product Type : Price Computing Scale Features : Dual Display for Customer and Operator Tare function Application : Price Computing Connectivity Type : Wired Battery Life : Up to 70 hours
